OCT Format Documentation

Disclaimer: If you're a non-programmer, please don't be intimidated by random code snippets showing up on this page. You don't need to be a genius to mod this game! The details are just there for the select few people that need them.

What are .oct files?

Files with the .oct extension are Tupperware files that describe a scene/game object, and often contain model metadata and textures. An .oct file doesn't just describe a 3D model, it typically contains a complete rigging and behavior system encompassing the following:

  • FX (e.g. weapon and turbo) attachment points (typically character-only)
  • Physics and Constraint systems
  • Animation logic (ClipData)
  • Bone list and transformation hierarchies (typically character-only)
  • Scene object placement and grouping of objects (typically map-only)
    • Includes objects such as drift strips, streetlamps, weapon pickups, neg-bashables, and bashables.
  • Navigation and gameplay markers (typically map-only)
  • Spawn locations (typically map-only)
  • And more!

What is inside an .oct file?

When using oct decode with the offsetting tool to convert an .oct file into .json or .yaml, the decoded file can be opened in any text editor. Upon opening the file, you'll find several pools. These pools (SubNetworkPool, TexturePool, MaterialPool, SceneTreeNodePool, VertexStreamPool, etc) all contain nodes within them. Every pool has a node-based system which interconnects all data that references each other.

(Examples below show what is contained within mcqueen.oct. Please keep in mind that character .oct files may differ and contain some differences/alterations from ones contained in map or choreography files.)

Ex. IndexBufferPool from mcqueen.oct:

"IndexBufferPool": {
  "IndexBuffer#0": {
    "Width": 2,
    "Name": "Static",
    "Flags": 91,
    "Size": 52872,
    "FileName": "mcqueen_0.ibuf"
  },
  "IndexBuffer#1": {
    "Width": 2,
    "Name": "Dynamic",
    "Flags": 127,
    "Size": 0
  },
  "IndexBuffer#2": {
    "Width": 4,
    "Name": "Static",
    "Flags": 91,
    "Size": 0
  },
  "IndexBuffer#3": {
    "Width": 4,
    "Name": "Dynamic",
    "Flags": 127,
    "Size": 0
  },
  "IndexBuffer#4": {
    "Width": 1,
    "Name": "Static",
    "Flags": 91,
    "Size": 0
  },
  "IndexBuffer#5": {
    "Width": 1,
    "Name": "Dynamic",
    "Flags": 127,
    "Size": 0
  }
}
Ex. TexturePool from mcqueen.oct:
"TexturePool": {
  "Texture#0": {
    "Name": "errorsky",
    "DataCRC": 6919142,
    "SourceFilePath": "prebuilt\\data_dx\\errortextures\\errorsky.dds",
    "Type": "Cube",
    "Data": "file:prebuilt\\data_dx\\errortextures\\errorsky.dds"
  },
  "Texture#1": {
    "Name": "mcqueen_eyealpha",
    "DataCRC": -947753952,
    "SourceFilePath": "characters\\mcqueen\\maps\\mcqueen_eyealpha.png",
    "Type": "2d",
    "Data": "file:characters\\mcqueen\\maps\\mcqueen_eyealpha.dds"
  },
  "Texture#2": {
    "Name": "mcqueen_body_d",
    "DataCRC": -339561918,
    "SourceFilePath": "characters\\mcqueen\\maps\\mcqueen_body_d.png",
    "Type": "2d",
    "Data": "file:characters\\mcqueen\\maps\\mcqueen_body_d.dds"
  },
  "Texture#3": {
    "Name": "mcqueen_body_s",
    "DataCRC": -495403757,
    "SourceFilePath": "characters\\mcqueen\\maps\\mcqueen_body_s.png",
    "Type": "2d",
    "Data": "file:characters\\mcqueen\\maps\\mcqueen_body_s.dds"
  },
}

Depending on the .oct file you are decoding, there may be differences with which pools and data are present, but regardless most of it all works the same way.

Important sections within an .oct:

While there are various sections within an .oct file, there are some that are especially important for modding, which will be listed here:

  • SubNetworkPool

    • While there isn't a ton of documentation or research behind SubNetworkPool, there are some things we know and can derive from context clues. The "Scene" listed within SubNetworkPool is the main network containing nearly everything. In other words, SubNetworkPool is the 'main container' holding all objects, controls, and logic for the scene.
    "SubNetworkPool": {
  "SubNetwork#0": {
    "Name": "Scene",
    "Type": "Scene",
    ...
  }
}

  • HeaderStrings / HeaderStringIndices / HeaderLayout

    "SubNetwork#0": {
  "Name": "Scene",
  "Type": "Scene",
  "HeaderStrings": [
    "Anchor",
    "Lazy_MouthConstraintGroup",
    "Transform",
    "KinematicState",
    "Body_Ctrl",
    ...
  ],
  "HeaderStringIndices": [0, 1, 2, 3, 4, 6, 7, ...],
  "HeaderLayout": [0, 1, 1, 197, 6, 1, ...],
  ...
}

    These three keys inside a SubNetwork definition describe the heirarchy of Headers, which are referenced within the nodes inside the network's DataPool. HeaderLayout is where it all starts; to interpret it correctly, you'll go through this array and process two elements at a time. The first element is an index that will eventually point back to a parent, and the second element will state the number of children. HeaderStringIndices maps the indices of headers into indices into the HeaderStrings array. (If you're a non-programmer, you can just think of HeaderStrings as an immutable dictionary of all named and utilized parts of the model such as controls, bones, facial features, and other systems like weapons.)

    import json

# Loading an `.oct` file's `.json` representation into a Python `dict`.
with open("mcqueen.oct.json", "r") as f:
  tup = json.load(f)

# Pulling out `HeaderStrings`, `HeaderStringIndices`, and `HeaderLayout`.
strings = tup["SubNetworkPool"]["SubNetwork#0"]["HeaderStrings"]
stringIndices = tup["SubNetworkPool"]["SubNetwork#0"]["HeaderStringIndices"]
layout = tup["SubNetworkPool"]["SubNetwork#0"]["HeaderLayout"]

# Reconstructing the Header heirarchy:
headerCount = len(stringIndices) + 1
headers = [None] * headerCount

headers[0] = {"Name": "SNAnchor"}

numCreated = 0
for i in range(0, len(layout), 2):
  parentIndex = layout[i]
  childCount = layout[i + 1]
  assert(parentIndex < numCreated + 1)
  assert(numCreated + childCount <= len(stringIndices))

  for j in range(childCount):
    nameIndex = stringIndices[numCreated]
    numCreated += 1
    headers[numCreated] = {"Name" : strings[nameIndex], "ParentIndex": parentIndex}

# Using the newly-created map to pull header information from a `DataNode` inside `DataNodePool`:
for snpNodeKey in tup["SubNetworkPool"]["SubNetwork#0"]["DataNodePool"]:
  snpNode = tup["SubNetworkPool"]["SubNetwork#0"]["DataNodePool"][snpNodeKey]
  _header = headers[snpNode["Header"]]

  • DataNodePool

    • A SubNetwork's DataNodePool contains a lot of the actual data for various parts of the scene in various DataNodes.
    • There are multiple node types in DataNodePool, but the most commonly seen types are Bool, Dilation, Float, Transform, ClipData and UberConstraintData. So far the uses and importance of many of these nodes are unknown.
    "DataNodePool": {
  "DataNode#274": {
    "Header": 216,
    "Type": "ClipData",
    "Static": 1,
    "ClipDataBlock": "base64:AAAAAAAAgD8BAAEAVAAAABgAAAAsAAAAAQABAAAAEgABACEAAAAZAAAAAAAABBAAAAAAAAAAgD8AAAAAAABAQQAAwECAAUA5AAABgFRVVFVUVe7u"
  },
  "DataNode#275": {
    "Header": 209,
    "Type": "Float",
    "Data": 0.0
  },
  "DataNode#276": {
    "Header": 543,
    "Type": "Transform",
    "BasisDataNodeRef": 19,
    "Data": {
      "Translation": [
        0.0,
        0.745424,
        0.43498504
      ],
      "Orientation#Rotor": [
        0.37173793,
        -0.0,
        -0.0,
        0.9283377
      ],
      "Scale": [
        0.70347464,
        0.27266786,
        1.0
      ]
    }
  }
}

  • CollisionShapePool

    • The CollisionShapePool contains all the collision geometry used by the model.
    • These "Collision Shapes" are simplified shapes used for physics, hit detection, and interaction, not rendering.
    • They are described with a ShapeType which contain coordinates indicating length, width, and height. Modifying these is largely unexplored.
    "CollisionShapePool": {
  "Shape#0": {
    "ShapeType": "ConvexHull",
    "SurfaceType": 0,
    "CollisionLayer": 0,
    "Points": [
      0.6534011,
      0.0,
      -1.9657959,
      -0.6534011,
      0.0,
      1.2484527,
      -0.6534011,
      0.0,
      -1.9657959,
      0.0,
      0.08910293,
      1.9657959,
      0.6534011,
      0.0,
      1.2484527
    ],
    "CollisionMargin": 0.4
  },
  "Shape#1": {
    "ShapeType": "Compound",
    "Shapes": {
      "Shape#0": {
        "ShapeRef": 0,
        "Transform": [
          1.0,
          0.0,
          0.0,
          0.0,
          0.0,
          1.0,
          0.0,
          0.0,
          0.0,
          0.0,
          1.0,
          0.0,
          0.0,
          0.3709195,
          0.0,
          1.0
        ]
      }
    }
  }
},

  • TexturePool

    • Contains raw texture-related data to used by the model.
    • Contains texture entries which state the names of textures and their corresponding file paths as well as the Type of texture it is.
    • The purpose of DataCRC is unknown, however, SourceFilePath is used by the engine for caching purposes; meaning that you'll need to change it if you replace that texture with a new one and it's SourceFilePath is non-unique.
    "TexturePool": {
  "Texture#0": {
    "Name": "errorsky",
    "DataCRC": 6919142,
    "SourceFilePath": "prebuilt\\data_dx\\errortextures\\errorsky.dds",
    "Type": "Cube",
    "Data": "file:prebuilt\\data_dx\\errortextures\\errorsky.dds"
  },
  "Texture#1": {
    "Name": "mcqueen_eyealpha",
    "DataCRC": -947753952,
    "SourceFilePath": "characters\\mcqueen\\maps\\mcqueen_eyealpha.png",
    "Type": "2d",
    "Data": "file:characters\\mcqueen\\maps\\mcqueen_eyealpha.dds"
  },
  "Texture#2": {
    "Name": "mcqueen_body_d",
    "DataCRC": -339561918,
    "SourceFilePath": "characters\\mcqueen\\maps\\mcqueen_body_d.png",
    "Type": "2d",
    "Data": "file:characters\\mcqueen\\maps\\mcqueen_body_d.dds"
  },
  "Texture#3": {
    "Name": "mcqueen_body_s",
    "DataCRC": -495403757,
    "SourceFilePath": "characters\\mcqueen\\maps\\mcqueen_body_s.png",
    "Type": "2d",
    "Data": "file:characters\\mcqueen\\maps\\mcqueen_body_s.dds"
  }
}

  • MaterialPool

    • MaterialPool is the where material information is stored.
    • Here you can find various data on what shaders, textures, and effects parts of a model can use. Modifying values and entries within a material node can change the look of how a model appears.
    "MaterialPool": {
  "Material#2": {
    "Name": "McQueen_Body",
    "Uuid": "8f0d01c1-d143-4141-98c4-89d5e14b059d",
    "Type": "Shader",
    "Effect": "a_1_dtmmsmqdrqcuceismm_skin",
    "RenderCaps": -2147477440,
    "TextureEntries": {
      "TextureEntry#0": {
        "TextureReference": 2,
        "Usage": "diffuseMapA1"
      },
      "TextureEntry#1": {
        "TextureReference": 3,
        "Usage": "specularMapA1"
      },
      "TextureEntry#2": {
        "TextureReference": 0,
        "Usage": "envMapInstance"
      },
      "TextureEntry#3": {
        "TextureReference": 4,
        "Usage": "environmentReflectivityMapA1"
      }
    },
    "PropertyEntries": {
      "PropertyEntry#0": {
        "Name": "MaxAnisotropy",
        "Type": "Int",
        "DataType": 10,
        "Value": 1
      },
      "PropertyEntry#1": {
        "Name": "scrollU1",
        "Type": "Float",
        "DataType": 0,
        "Value": 0.0
      },
      "PropertyEntry#2": {
        "Name": "scrollV1",
        "Type": "Float",
        "DataType": 0,
        "Value": 0.0
      },
      "PropertyEntry#3": {
        "Name": "diffuseColorA1",
        "Type": "Float",
        "DataType": 2,
        "Value": [
          1.0,
          1.0,
          1.0
        ]
      },
      "PropertyEntry#4": {
        "Name": "diffuseColorTertiary",
        "Type": "Float",
        "DataType": 2,
        "Value": [
          0.5,
          0.5,
          0.5
        ]
      },
      "PropertyEntry#5": {
        "Name": "specularShineA1",
        "Type": "Float",
        "DataType": 0,
        "Value": 100.0
      },
      "PropertyEntry#6": {
        "Name": "specularFresnelA1",
        "Type": "Float",
        "DataType": 0,
        "Value": 0.43
      },
      "PropertyEntry#7": {
        "Name": "environmentReflectivityMapAmountA1",
        "Type": "Float",
        "DataType": 0,
        "Value": 1.0
      },
      "PropertyEntry#8": {
        "Name": "environmentFresnelA1",
        "Type": "Float",
        "DataType": 0,
        "Value": 0.85
      },
      "PropertyEntry#9": {
        "Name": "g_AlphaModifier",
        "Type": "Float",
        "DataType": 0,
        "Value": 1.0
      },
      "PropertyEntry#10": {
        "Name": "CullBackFaces",
        "Type": "Bool",
        "DataType": 10,
        "Value": 1
      }
    }
  },
}

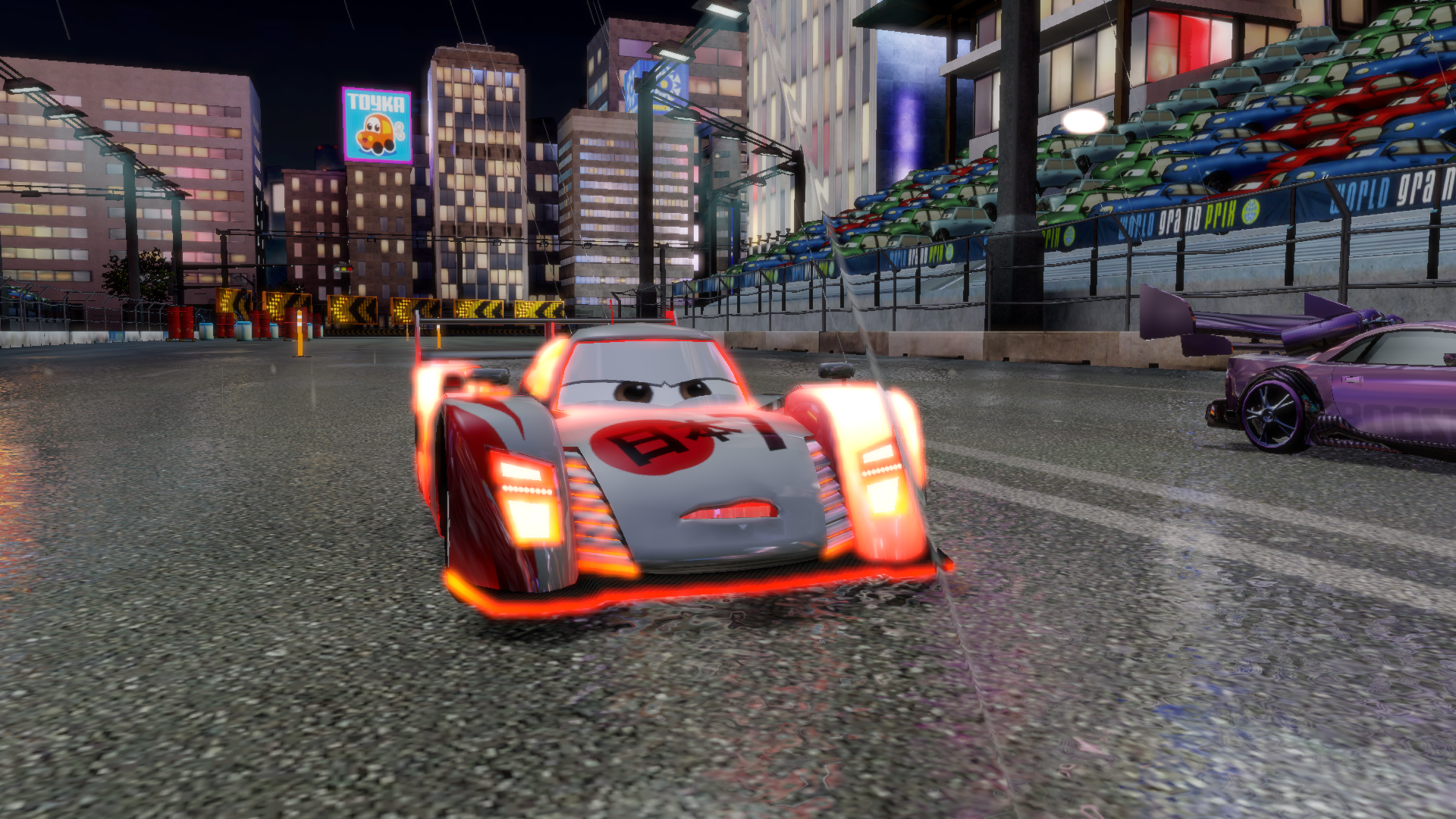

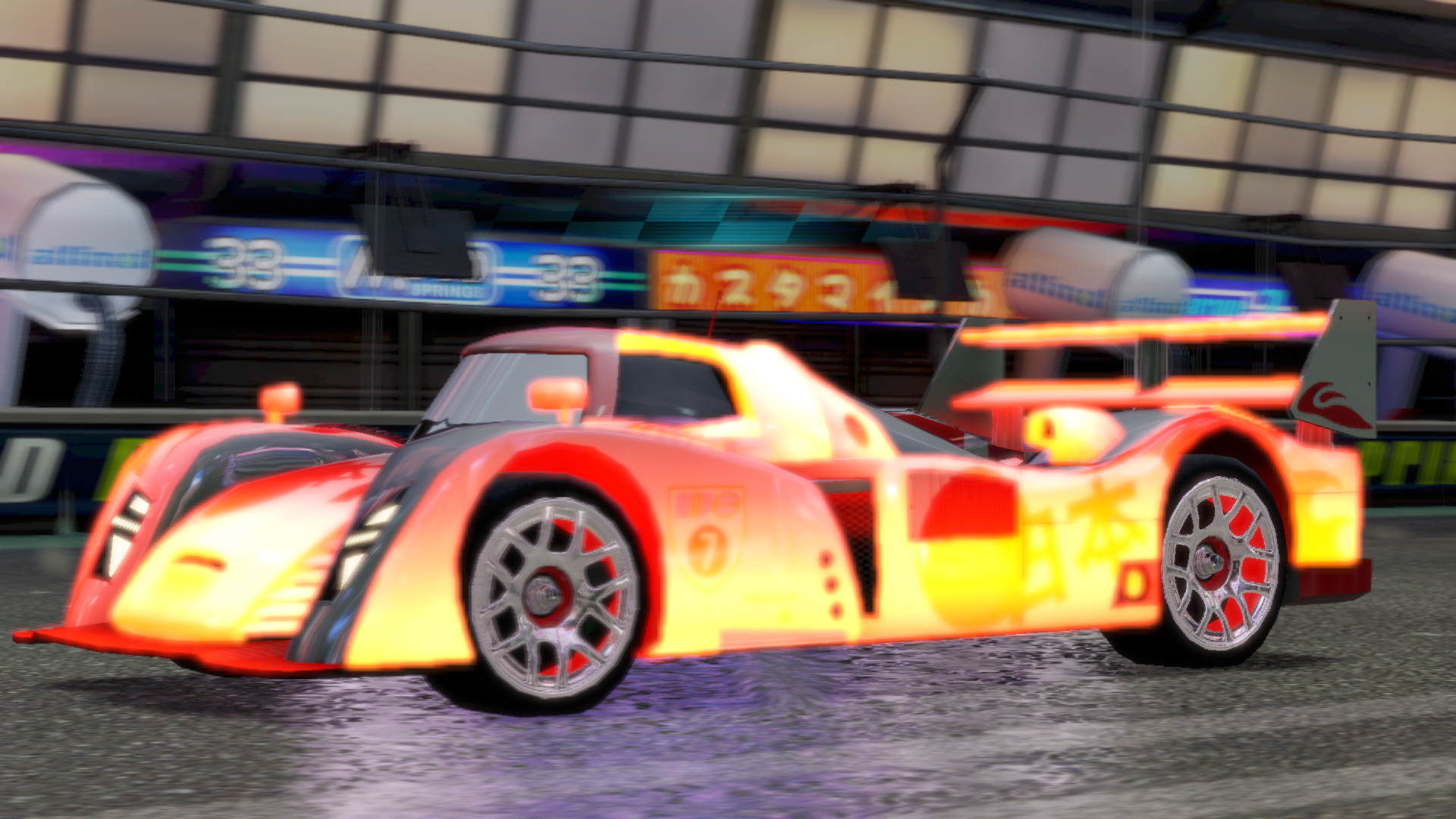

Here's an example on how a model can change appearance by modifying the materials.

Fire Shu image 2

Fire Shu image 1

Credit to I Guess for the images

  • IndexBufferPool

    • Location where vertex indices are stored.

  • VertexBufferPool

    • Stores raw vertex data, holding the actual geometrical points that make up the model.

  • IndexStreamPool

    • Defines the interpretation of index buffers using primitive types and index formats (uint16, int24, etc).
    • Usually an indicator of specific meshes

  • VertexStreamPool

    • Defines the interpretation of vertex buffer data from VertexBufferPool. (explains what each piece of vertex data means and how to read it.)
    • Describes which attributes exist on a mesh (Position, Normal, UV, ColorPrelight, etc.)

  • SceneComponentPool

    • Describes SceneComponents which, as their name suggests, are external components that can be attached to nodes inside SceneTreeNodePool. There are two main types of SceneComponents that you'll see in Cars 2: SkinRemap and CarEyes.
    "SceneComponentPool": {
  "SceneComponent#0": {
      "Type": "SkinRemap",
      "RemapData": [32, 33, 34, 35, 28, 29, 30, 31, ...]
  },
  "SceneComponent#1": {
      "Type": "CarEyes"
  }
}

    For characters, CarEyes simply just needs to be there. No actual scene tree nodes need to explicitly reference it, instead, it just needs to be attached to an ComponentLink inside AssociationPool. SkinRemap, on the other hand, must be there for the game's skinning system to work.

    SkinRemap exists because many rigs in this game often have a lot of bones, and as a result, there are not enough vertex shader constant registers on DirectX 9 on desktop Windows to fit 4x4 transformation matrices for every single bone. So, the developers work around this by limiting the number of bones that each mesh can use to 42, and split up the meshes such that this rule is followed. Usually, every mesh has its own SkinRemap, but this isn't a hard rule, so if the scene's skeleton has less than 42 bones, you can assign every mesh the same SkinRemap.

    Interpreting SkinRemap correctly is crucial to importing bone influences. When processing a mesh's VertexStream, you interpret the BoneIndices element as follows:

    # i hate this stupid engine
boneIndices = struct.unpack("BBBB", vBuf.read(4))
remapData = tup["SceneComponentPool"][f"SceneComponent{sceneComponentIndex}"]["RemapData"]
# these now actually match the `BoneID`s listed in each bone's definition in `SceneTreeNodePool`.
boneIndices = remapData[boneIndices[0]], remapData[boneIndices[1]], remapData[boneIndices[2]], remapData[boneIndices[3]]

    (This is pseudocode. vBuf represents a handle to an actual .vbuf file, seeked to the offset of some VertexStream and the inner offset of the BoneIndices element. sceneComponentIndex represents a SceneComponentReference from a mesh listed in SceneTreeNodePool.)

    SkinRemap doesn't exist on the console versions of Cars 2, ~~because of course it doesn't. Nothing is ever as simple as it should be.~~ because there are more than enough vertex shader constant registers on both PlayStation 3 and Xbox 360 to fit every bone's transform without needing to remap things. ~~I don't know who to blame here. Microsoft? NVIDIA? AMD? I'm not smart enough to figure this one out.~~

  • SceneTreeNodePool

    • Describes SceneTreeNodes. As their name suggests, these describe nodes in the scene tree; bones, meshes, and everything in between are listed here:

    Meshes are either typed as SubGeometryLit or SubGeometry. Either way, they have vertex streams, scene components, and an index stream attached to them. Usually, the number of vertex streams attached to a mesh is exactly two on the Windows ports of Cars 2, and only one scene component is attached. However, it is extremely important to note that meshes are not allowed to have three vertex streams attached in Cars 2: Arcade. That only works on Win32_Wii. Trying to use a mesh with three vertex streams on Arcade will result in a game crash.

    "SceneTreeNodePool": {
  "Node#40": {
    "Type": "SubGeometryLit",
    "ParentNodeReferences": [39],
    "LocalToParentMatrix": [
      1.0, 0.0, 0.0, 0.0,
      0.0, 1.0, 0.0, 0.0,
      0.0, 0.0, 1.0, 0.0,
      0.0, 0.0, 0.0, 1.0
    ],
    "BoundingCenter": [-2.3841858e-7, 0.7533521, -0.12268567],
    "NodeName": "bodyMesh_McQueen_Body",
    "RenderCaps": 2363407,
    "MaterialReference": 2,
    "BillboardType": -1,
    "VertexStreamReferences": [0, 1],
    "IndexStreamReference": 0,
    "SceneComponentReferences": [0]
  }
}

    Bones are simply typed as Bones. The data inside each bone definition is mostly self-explanatory.

    "SceneTreeNodePool": {
  "Node#4": {
    "NodeName": "Body",
    "Uuid": "9b3797f9-b527-45cc-b0bd-158f09a8f5cc",
    "DisplayLayer": 0,
    "Type": "Bone",
    "ParentGeometryReference": 1,
    "BillboardType": -1,
    "BoneID": 1,
    "BoneToModelMatrix": [
      1.0, -0.0, 4.371139e-8, 0.0,
      0.0, 1.0, 0.0, 0.0,
      -4.371139e-8, 0.0, 1.0, 0.0,
      0.0, 0.43998054, 0.0, 1.0
    ],
    "BoneToStandardMatrix": [
      1.0, 0.0, 0.0, 0.0,
      0.0, 1.0, 0.0, 0.0,
      0.0, 0.0, 1.0, 0.0,
      0.0, -0.43998054, 0.0, 1.0
    ],
    "PivotPoint": [0.0, 0.43998054, 0.0],
    "BoneEndPoint": [-4.371139e-9, 0.43998054, 0.1],
    "BoundingBox": [-1.1486998, -0.3883578, -2.4852846, 1.1486993, 1.015101, 1.7133833],
    "NumAssignedVerts": 2691,
    "VizCullingBound": 1,
    "ParentNodeReferences": [3],
    "LocalToParentMatrix": [
      1.0, 0.0, 0.0, 0.0,
      0.0, 1.0, 0.0, 0.0,
      0.0, 0.0, 1.0, 0.0,
      0.0, 0.0, 0.0, 1.0
    ]
  }
}

  • AssociationPool

    • Describes Associatons. Very little is known about these, unfortunately.
    "AssociationPool": {
  "Association#0": {
    "NodeName": "ComponentLink_0",
    "Type": "ComponentLink",
    "NodeRef": 1,
    "ComponentRef": 1
  }
}

    One thing we do know, is that the first Association in a character's scene file will allways be a ComponentLink, and will always have the ComponentRef point to the CarEyes entry in SceneComponentPool, no matter what.

IndexBufferPool, IndexStreamPool, VertexBufferPool, and VertexStreamPool come together to create a pipeline that ultimately results in the final, rendered model. If you modify any one of these it will destroy the look of a model. These four pools are usually modified in tandem when custom models are created.
